A light is a special class of Game Object that mostly just sends uniform data to the shaders. Lights are fundamental to the shading pipeline! Without a light, nothing will show up in the scene. More...

#include <Light.h>

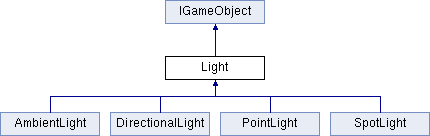

Inheritance diagram for Light:

Classes
struct	LightUniformLocations
	Holds the various uniform location ID's of the Light. More...

Public Member Functions
	Light ()

	~Light ()

virtual void	Draw (GLuint) override
	Sets up the light uniform location id's from the program. Each subclass must then send their corresponding params to the shader. More...

virtual void	DrawShadow (GLuint) override
	Sends shadow information. Each subclass must implement this functionality! More...

virtual void	Update () override
	Updates the light. This currently does nothing! Draw() does update the light. More...

virtual void	Destroy () override
	Destroys the light. This currently only turns off the enabled flag! More...

virtual void	SetTexture (const std::string &, const TextureType &, const GLuint &) override
	Adds a texture to an object. More...

virtual const GLuint	GetTexture (const std::string &) const override
	Gets a texture. More...

bool	EnableShadows ()
	Enables shadow generation for this light. More...

bool	DisableShadows ()
	Disables shadow generation for this light. More...

void	SetAttenuation (float constant=0.0f, float linear=1.0f, float quadratic=0.0f)
	Sets the attenutation parameters. See this wiki article for more information about attenuation: https://developer.valvesoftware.com/wiki/Constant-Linear-Quadratic_Falloff. More...

Public Member Functions inherited from IGameObject
virtual	~IGameObject ()
	Destructor that deletes the unique shader program and shadow program belonging to the object. More...

virtual void	SetProgram (GLuint shaderName)
	Sets the main shader program corresponding to this object. More...

virtual void	SetShadowProgram (GLuint shaderName)
	Sets the shadow pass shader program corresponding to this object. More...

virtual GLuint	GetProgram ()
	Gets the object's main shader program. More...

virtual GLuint	GetShadowProgram ()
	Gets the object's shadow program. More...

Public Attributes
glm::vec3	ambient
	light's contribution to ambient light. More...

glm::vec3	color
	The color/intensity of the light. More...

glm::vec3	position
	location of light if isLocal is true. For directional light, it is the direction More...

glm::vec3	halfVector
	?? direction of headlights for directional light ?? More...

glm::vec3	coneDirection
	spotlight cone direction. More...

float	spotCosCutoff
	how wide the spotlight is [0-1]. More...

float	spotExponent
	control light fall-off in the spotlight. More...

float	constantAttenuation
	constant light fall-out More...

float	linearAttenuation
	linear light fall-off More...

float	quadraticAttenuation
	quadratic light fall-out More...

bool	isEnabled
	true if this object is enabled. More...

Protected Attributes
GLuint	texture

unsigned int	_id

bool	castsShadow

int	type

struct Light::LightUniformLocations	ids

Protected Attributes inherited from IGameObject
GLuint	program = 0

GLuint	shadowProgram = 0

Detailed Description

A light is a special class of Game Object that mostly just sends uniform data to the shaders. Lights are fundamental to the shading pipeline! Without a light, nothing will show up in the scene.

Constructor & Destructor Documentation

Light::Light ( )

Light::~Light ( )

inline

Member Function Documentation

void Light::Destroy ( )

overridevirtual

Destroys the light. This currently only turns off the enabled flag!

Implements IGameObject.

bool Light::DisableShadows ( )

Disables shadow generation for this light.

Returns: true if it succeeds, false if it fails.

void Light::Draw ( GLuint program )

overridevirtual

Sets up the light uniform location id's from the program. Each subclass must then send their corresponding params to the shader.

Parameters

program The shader program.

Implements IGameObject.

Reimplemented in SpotLight, PointLight, AmbientLight, and DirectionalLight.

void Light::DrawShadow ( GLuint )

overridevirtual

Sends shadow information. Each subclass must implement this functionality!

Parameters

program The shader program.

Implements IGameObject.

Reimplemented in DirectionalLight.

bool Light::EnableShadows ( )

Enables shadow generation for this light.

Returns: true if it succeeds, false if it fails.

const GLuint Light::GetTexture ( const std::string & textureName ) const

overridevirtual

Gets a texture.

Parameters

textureName The name of the texture.

Returns: The texture.

Implements IGameObject.

void Light::SetAttenuation	(	float	constant = `0.0f`,
		float	linear = `1.0f`,
		float	quadratic = `0.0f`
	)

Sets the attenutation parameters. See this wiki article for more information about attenuation: https://developer.valvesoftware.com/wiki/Constant-Linear-Quadratic_Falloff.

Author: Harry

Date: 4/14/2016

Parameters

constant	The constant attenuation factor.
linear	The linear attenuation factor.
quadratic	The quadratic attenuation factor.

void Light::SetTexture	(	const std::string &	textureName,
		const TextureType &	textureType,
		const GLuint &	texture
	)

overridevirtual

Adds a texture to an object.

Parameters

textureName	Name of the texture.
textureType	Type of the texture.
texture	The texture id.

Implements IGameObject.

void Light::Update ( )

overridevirtual

Updates the light. This currently does nothing! Draw() does update the light.

Implements IGameObject.

Member Data Documentation

unsigned int Light::_id

protected

glm::vec3 Light::ambient

light's contribution to ambient light.

bool Light::castsShadow

protected

glm::vec3 Light::color

The color/intensity of the light.

glm::vec3 Light::coneDirection

spotlight cone direction.

float Light::constantAttenuation

constant light fall-out

glm::vec3 Light::halfVector

?? direction of headlights for directional light ??

struct Light::LightUniformLocations Light::ids

protected

bool Light::isEnabled

true if this object is enabled.

float Light::linearAttenuation

linear light fall-off

glm::vec3 Light::position

location of light if isLocal is true. For directional light, it is the direction

float Light::quadraticAttenuation

quadratic light fall-out

float Light::spotCosCutoff

how wide the spotlight is [0-1].

float Light::spotExponent

control light fall-off in the spotlight.

GLuint Light::texture

protected

int Light::type

protected
